Monitor Any Running Process with the Telegraf Agent

Monitor Any Running Process with the Telegraf Agent

Table of Contents

Introduction

Monitoring services and running processes on your server is crucial for maintaining system stability, optimizing performance, ensuring security, and making informed decisions regarding resource management and scaling strategies. It provides valuable insights that empower you to maintain a healthy and efficient infrastructure while meeting business or operational requirements

In this article we'll detail how to use the Telegraf agent to collect performance statistics from any running process, and forward them to a datasource.

Getting Started with the Telegraf Agent

Telegraf is a plugin-driven server agent built on InfluxDB, and is used for collecting and sending metrics/events from databases, systems, processes, devices, and applications. Telegraf is written in Go and compiles into a single binary with no external dependencies, and requires a very minimal memory footprint. It is compatible with many operating systems, and has many useful output plugins and input plugins for collecting and forwarding a wide variety of system performance metrics.

Install Telegraf (linux/redhat)

Download Telegraf and unzip it (see the telegraf docs for up-to-date versions and installation commands for many operating systems). Packages and files are generally installed in the /etc directory.

Ubuntu/Debian
wget https://dl.influxdata.com/telegraf/releases/telegraf_1.21.2-1_amd64.deb
sudo dpkg -i telegraf_1.21.2-1_amd64.deb

RedHat/CentOS

wget https://dl.influxdata.com/telegraf/releases/telegraf-1.21.4-1.x86_64.rpm
sudo yum localinstall telegraf-1.21.4-1.x86_64.rpm

Configure an Output

You can configure telegraf to output to a variety of sources, like Kafka, Graphite, InfluxDB, Prometheus, SQL, NoSQL, and more.

In this example we will configure telegraf with a Graphite output. If you're not currently hosting your own datasource, you can start a free trial with Hosted Graphite by MetricFire in order to follow along with these next steps.

A Hosted Graphite account will provide the datasource, offers an alerting feature, and includes Hosted Grafana as a visualization tool.

To configure the Graphite output, you need to locate the downloaded telegraf configuration file at /etc/telegraf/telegraf.conf and open it in your preferred text editor. Then you will need to make the following changes to the file:

Locate and comment out the line:

# [[outputs.influxdb]]

Then, uncomment the line:

[[outputs.graphite]]

Next, uncomment and edit the servers line to:

servers = ["carbon.hostedgraphite.com:2003"]

Finally, uncomment and edit the prefix line to:

prefix = "<YOUR_API_KEY>.telegraf"
If you don't already have a Hosted Graphite account, sign up for a free trial here to obtain a Hosted Graphite API key.
Otherwise, you can configure a different telegraf output to forward metrics to another datasource.

Configure the Telegraf Procstat Input Plugin:

Telegraf has many input plugins that can collect a wide range of data from many popular technologies and 3rd party sources. In this example, we'll demonstrate how to configure Procstat to forward performance metrics from any process running in your server.

All you need to do is search for the inputs.procstat section in your telegraf.conf file, uncomment the [[inputs.procstat]] line, and uncomment/define the patterns line:

[[inputs.procstat]]
  pattern = "nginx"

You could also define multiple patterns, like this:

[[inputs.procstat]]
  pattern = 'nginx'

[[inputs.procstat]]
  pattern = 'redis'

Additionally, there are other methods for processes to be selected for monitoring such as pid_file, executable, user, system unit, or cgroup:

[[inputs.procstat]]
  pid_file = "/var/run/nginx.pid"


[[inputs.procstat]]
  exe = "redis"

[[inputs.procstat]]
  user = "haproxy"

Save your changes and then run telegraf as a server using the following command, to see if there are any configuration errors in the output:

telegraf --config telegraf.conf

Telegraf will now be forwarding about 50-100 procstat performance metrics per service configured, and the Graphite metric format will look similar to:

telegraf.<host>.<process>.<source>.<collector-subcategory>.procstat.<performance-metric>

These metrics will include statistics related to CPU (utilization, time consumed), Mem (total, RSS, VMS), IO (disk reads/writes, throughput), Process State (PID, threads, uptime), Errors (page faults), Network (packets, bandwidth utilization), and more. Procstat can forward performance metrics from any service or running process within your server once the service name is properly defined in the telegraf.conf file!

See the official GitHub repository for additional configuration options and a full list of performance metrics returned by the procstat plugin.

Use Hosted Graphite by MetricFire to Create Custom Dashboards and Alerts

MetricFire is a monitoring platform that enables you to gather, visualize and analyze metrics and data from sources such as servers, databases, networks, processes, devices, and applications. By utilizing MetricFire, you can effortlessly identify problems and optimize resources from within your infrastructure. Hosted Graphite by MetricFire takes away the burden of self-hosting your own monitoring solution, allowing you more time and freedom to work on your most important tasks.

Once you have signed up for a Hosted Graphite account and used the above steps to configure your server with the Telegraf Agent, metrics will be forwarded, timestamped, and aggregated into the Hosted Graphite backend.

  1. Metrics will be sent and stored in the Graphite format of: metric.name.path <numeric-value> <unix-timestamp>
  2. The dot notation format provides a tree like data structure and makes them efficient to query
  3. Metrics are stored in your Hosted Graphite account for 2 years, and you can use them to create custom Alerts and Grafana dashboards

Build Dashboards in Hosted Graphite's Hosted Grafana

In the Hosted Graphite UI, navigate to Dashboards => Primary Dashboards and select the + button to create a new panel:

Monitor Any Running Process with the Telegraf Agent - 1

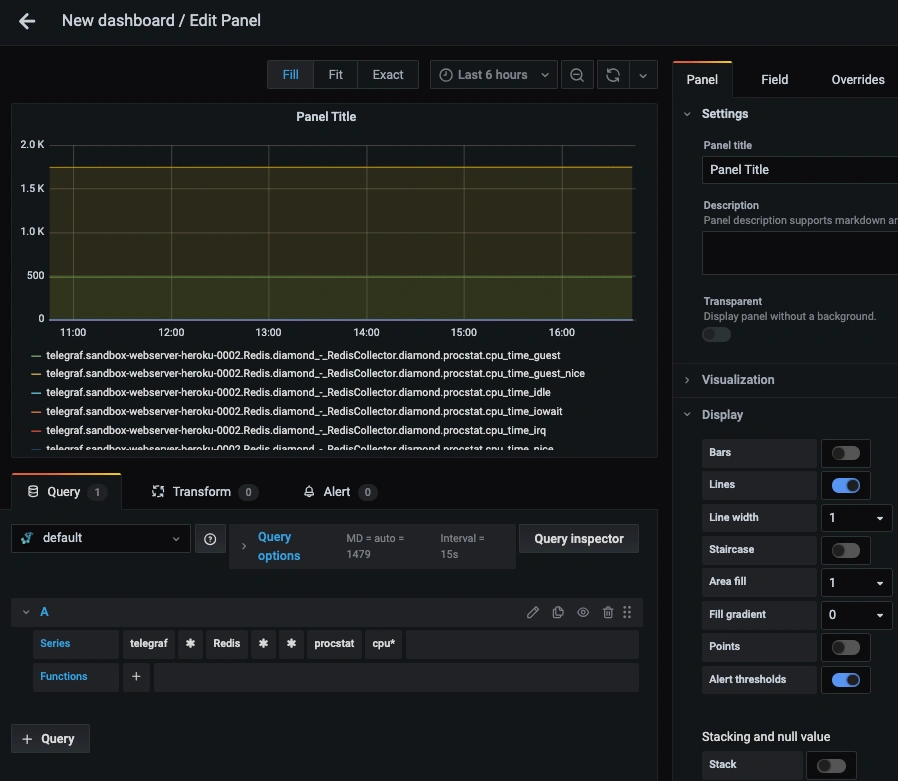

Then you can use the query UI to select a graphite metric path (the default datasource will be the hosted graphite backend if you are accessing Grafana through your Hosted Graphite account):

Monitor Any Running Process with the Telegraf Agent - 2

The Hosted Graphite datasource also supports wildcard (*) searching to grab all metrics that match a specified path.

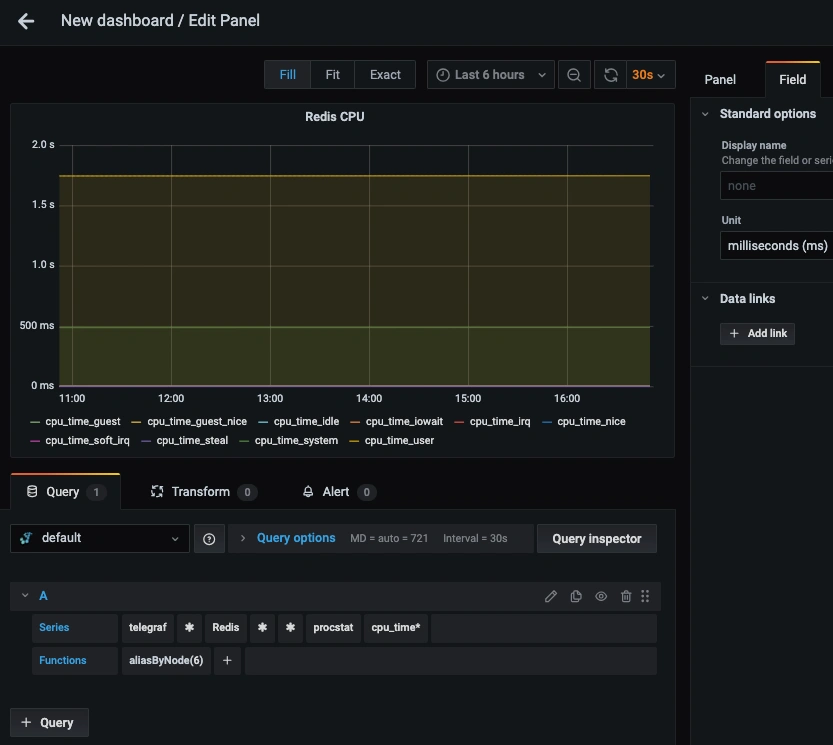

Now you can apply Graphite functions to these metrics, like aliasByNode() to reformat the metric names on the graph:

Monitor Any Running Process with the Telegraf Agent - 3

Grafana has many additional options to apply different visualizations, modify the display, set units of measurement, and some more advanced features like configuring dashboard variables and event annotations.

See the Hosted Graphite dashboard docs for more details.

Creating Graphite Alerts

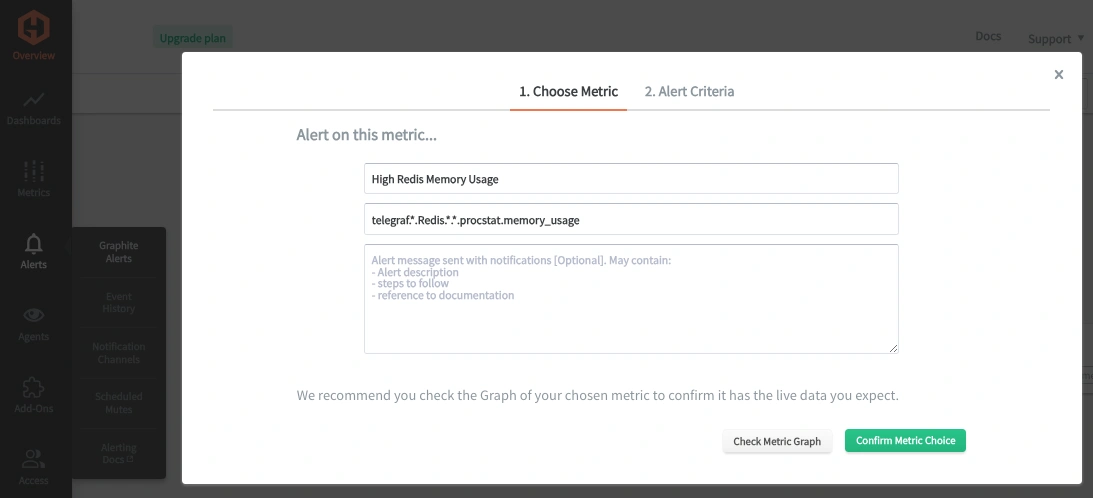

In the Hosted Graphite UI, navigate to Alerts => Graphite Alerts to create a new alert. Name the alert, add a query to the alerting metric field, and add a description of what this alert is:

Monitor Any Running Process with the Telegraf Agent - 4

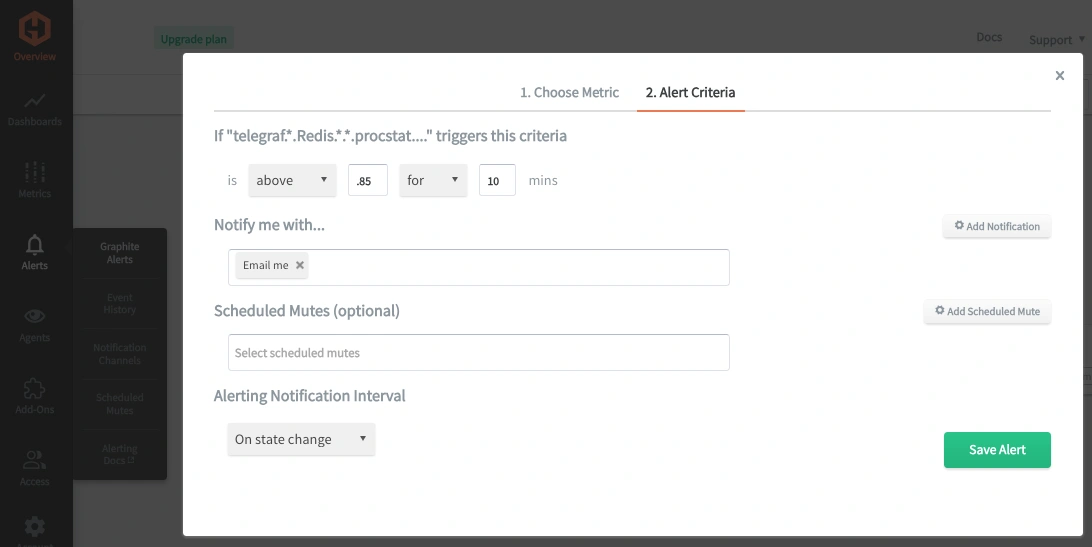

Then select the Alert Criteria tab to set a threshold, and select a notification channel. The default notification channel is the email you used to signup for the Hosted Graphite account, but you can easily configure channels for Slack, PagerDuty, Microsoft Teams, OpsGenie, custom webhooks and more. See the Hosted Graphite docs for more details on notification channels:

Monitor Any Running Process with the Telegraf Agent - 5

Conclusion

Monitoring the performance of service and running processes within your server is essential for ensuring seamless business operations, maintaining security, enhancing user experiences, meeting compliance standards, and enabling scalability, which will ultimately contribute to the overall success and efficiency of a business.

Performance monitoring provides valuable data, and using tools like dashboards and alerts will complement this data by providing real-time visualization, proactive identification of issues, historical trend analysis, and facilitating informed decision-making, all of which are essential for maintaining a robust and efficient infrastructure.

Sign up for the free trial, and experiment with monitoring your services and running processes on your server today. You can also book a demo and talk to the MetricFire team directly about your monitoring needs.
